What is a Triton2 2.5GigE machine vision camera?

Triton2 is a compact industrial machine vision camera family that streams raw, uncompressed image data over 2.5 Gigabit Ethernet (2.5GigE). It uses a GigE Vision compliant interface with an M12 Ethernet connector for robust industrial connectivity.

When should I use 2.5GigE instead of 1GigE for machine vision?

Use 2.5GigE when you need higher acquisition speed or higher frame rates than 1GigE can sustain, while keeping a similar Ethernet-based architecture. Triton2 is positioned as an upgrade path for 1GigE systems by providing up to 2.5 Gb/s (300 MB/s) bandwidth for raw, uncompressed streaming.

How does Power over Ethernet (PoE) help in a vision system design?

PoE delivers data and power on a single Ethernet cable, simplifying wiring and reducing the need for separate power runs. On Triton2, PoE support is intended to streamline installation and maintenance in industrial Ethernet deployments.

What does IP67 mean for the Triton2 camera, and what is required to achieve it?

IP67 is an ingress protection rating indicating dust protection and water ingress protection up to 1 meter submersion for 30 minutes. For Triton2, IP67 operation is achieved with an IP67 sealed lens tube and attachment ring, plus IP67 M12 and M8 cables to seal the rear ports.

What sensor and shutter options are available in Triton2 models?

Triton2 models span multiple resolutions and sensor formats and include both global shutter and rolling shutter CMOS options depending on the specific model. Many models use Sony Pregius S and other CMOS sensors, and the model list specifies shutter type per part number.

What is Active Sensor Alignment, and why does it matter for imaging performance?

Active Sensor Alignment is a manufacturing process used on Triton2 to minimize sensor tilt and rotation and to align the sensor center to the lens optical axis. This alignment is intended to improve sharpness and uniformity, including in the image corners.

How do I integrate a Triton2 camera into a GigE Vision system?

Triton2 is specified as 100% GigE Vision compliant, supporting compatibility with GigE Vision compliant third-party software and hardware. The page also notes deployment with shielded CAT5e or CAT6 cables up to 100 m between the camera and host.

What is the benefit of M12 Ethernet and M8 GPIO connectors in industrial environments?

M12 and M8 connectors provide secure, vibration-resistant connections with ingress protection against dust and water when used with appropriate sealing accessories. The M12 Ethernet connector is standardized as IEC 61076-2-109 and is included in the GigE Vision standard, and the M8 GPIO connector is standardized to IEC 61076-2-104.

What I/O capabilities are supported on Triton2 via the M8 connector?

The Triton2 M8 GPIO interface is described with an opto-coupled input line, an opto-coupled output line, and two bidirectional lines. This supports common machine vision control tasks such as interfacing with external devices through a robust industrial connector.

What specialized Triton2 variants exist for event-based vision, SWIR, or line scan applications?

The Triton2 family includes event-based models using Sony | Prophesee sensors with a shutter-free operating mode, and SWIR models using Sony InGaAs sensors specified for 400 nm to 1700 nm sensitivity range. A Triton2 line scan model is also listed, providing a 4096 x 2 px format with line rate specifications.

Is Triton2 suitable for harsh industrial environments and continuous operation?

Triton2 is described as a sealed aluminum camera design with robust connectors and industrial immunity features such as EMC protection and resistance to shock and vibration. The specified ambient operating temperature range is -20°C to 55°C, and IP67 protection is supported when used with the required sealing accessories.

Triton2 - 2.5GigE Machine Vision Camera

Triton2 - 2.5GigE Camera: The Perfect Balance Between Performance, Size, and Cost

A Factory Tough^™ Industrial Camera

TRITON2

Triton2 - 2.5GigE カメラ: 性能、サイズ、コストの絶妙なバランス

「ファクトリータフ」産業用カメラ

TRITON2

Triton2 - 2.5GigE Kamera: Das perfekte Gleichgewicht zwischen Leistung, Größe und Kosten.

Factory Tough^™ Industriekamera

TRITON2

Triton2 - 2.5GigE 카메라: 성능, 크기 및 비용 간의 완벽한 균형

"Factory Tough"^™ 산업용 카메라

TRITON2

Triton2 - Uncompromised Industrial Camera Design

Explore our Triton2 2.5GigE camera models

For an in-depth look at model specifications please click the part numbers below.

Model	MP	Resolution	FPS	Sensor	Format	Pixel Size	Shutter	Lens Mount	Chroma	Interface
TRT245S	24.5 MP	5320 x 4600 px	11.3 fps	Sony IMX540 CMOS	1.2"	2.74 µm	Global	C	Mono / Color	2.5GigE M12
TRT204S	20.4 MP	4504 x 4504 px	13.5 fps	Sony IMX541 CMOS	1.1"	2.74 µm	Global	C	Mono / Color	2.5GigE M12
TRT200S	20.0 MP	5472 x 3648 px	9.0 fps	Sony IMX183 CMOS	1"	2.40 µm	Rolling	C	Mono / Color	2.5GigE M12
TRT162S	16.2 MP	5320 x 3040 px	17.5 fps	Sony IMX542 CMOS	1.1"	2.74 µm	Global	C	Mono / Color	2.5GigE M12
TRT124S	12.3 MP	4096 x 3000 px	21.7 fps	Sony IMX545 CMOS	1/1.1"	2.74 µm	Global	C	Mono / Color	2.5GigE M12
TRT120S	12.3 MP	4096 x 3000 px	22.6 fps	Sony IMX304 CMOS	1.1"	3.45 µm	Global	C	Mono / Color	2.5GigE M12
TRT081S	8.1 MP	2840 x 2840 px	31.8 fps	Sony IMX546 CMOS	2/3″	2.74 µm	Global	C	Mono / Color	2.5GigE M12
TRT071S	7.1 MP	3208 x 2200 px	35 fps	Sony IMX428 CMOS	1.1"	4.5 µm	Global	C	Mono / Color	2.5GigE M12
TRT064S	6.3 MP	3072 x 2048 px	42.8 fps	Sony IMX178 CMOS	1/1.8”	2.40 µm	Rolling	C	Mono / Color	2.5GigE M12
TRT051S	5.0 MP	2448 x 2048 px	49.2 fps	Sony IMX547 CMOS	1/1.8″	2.74 µm	Global	C	Mono / Color	2.5GigE M12
TRT050S	5.0 MP	2448 x 2048 px	35.6 fps	Sony IMX264 CMOS	2/3"	3.45 µm	Global	C	Mono / Color	2.5GigE M12
TRT032S	3.2 MP	2048 x 1536 px	55.6 fps	Sony IMX265 CMOS	1/1.8"	3.45 µm	Global	C	Mono / Color	2.5GigE M12
TRT028S	2.8 MP	1936 x 1464 px	64.9 fps	Sony IMX429 CMOS	2/3"	4.5 µm	Global	C	Mono / Color	2.5GigE M12
TRT024G	2.4 MP	2048 x 1200 px	107.2 fps	Gpixel GMAX4002 CMOS	1/1.7"	4.0 µm	Global	C	Mono / Color	2.5GigE M12
TRT023S	2.3 MP	1920 x 1200 px	116.7 fps	Sony IMX392 CMOS	1/2.3"	3.45 µm	Global	C	Mono / Color	2.5GigE M12
TRT016S	1.6 MP	1440 x 1080 px	166.3 fps	Sony IMX273 CMOS	1/2.9"	3.45 µm	Global	C	Mono / Color	2.5GigE M12

Event-Based Models

Models	MP	Resolution	FPS	Sensor	Sensor Size	Pixel Size	Shutter	Lens Mount	Chroma	GigE Interface
TRT009S-EC	0.9 MP	1280 x 720 px	N/A	Sony \| Prophesee IMX636 CMOS	1/2.5”	4.86 μm	Shutter-Free	C	N/A	2.5GigE M12
TRT003S-EC	0.3 MP	640 x 512 px	N/A	Sony \| Prophesee IMX637 CMOS	1/4.5”	4.86 μm	Shutter-Free	C	N/A	2.5GigE M12

SWIR Models

Models	MP	Resolution	FPS	Sensor	Sensor Size	Pixel Size	Shutter	Cooling	Lens Mount	Chroma / Sensitivity range	Interface
TRT053S-WC	5.2 MP	2560 x 2048 px	49.4 fps	Sony IMX992 InGaAs	1/1.4“	3.45 µm	Global	None	C	Mono, 400nm to 1700nm	2.5GigE M12
TRT033S-WC	3.2 MP	2048 x 1536 px	80.3 fps	Sony IMX993 InGaAs	1/1.8“	3.45 µm	Global	None	C	Mono, 400nm to 1700nm	2.5GigE M12

Line Scan Model

Models	Resolution	Line Rate	Sensor	Sensor Size	Pixel Size	Shutter	Lens Mount	Chroma	GigE Interface
TRT04KG	4096 x 2 px	65 kHz (Mono) 33 kHz (Color)	Gpixel GL3504 CMOS	14.3 mm	3.5 μm	Global	C	Mono / Color	2.5GigE M12

More Speed, Same Factory Tough^™ Quality

The Triton2 offers unprecedented performance in a cost-effective, compact camera. The adoption of a 2.5 GigE (300 MB/s) interface enables higher bandwidth than 1 GigE cameras without compromising on size, thermal management, or Power over Ethernet (PoE) support. Upgrade your 1GigE camera today and take advantage of 2.5x times faster frame rates in a Factory Tough™ industrial camera with: • Active sensor alignment • Power over Ethernet (PoE) • Wide operating temperature range (-20 to 55°C ambient) • Physical shock and vibration protection • EMC industrial immunity • IP67 dust and water protection.

Frame Rate Increase Example:

Sony IMX547 CMOS, 5.0 MP, 2448 x 2048 px USD $635.00

22 FPS

49.2 FPS

1 GigE:

(RAW, Uncompressed)

より速く、同様のファクトリータフな品質

Triton2 は、費用対効果に優れたコンパクトカメラで、かつてない性能を提供します。2.5 GigE (300 MB/s) インターフェースを採用し、サイズ、放熱設計、PoE 機能を損なうことなく、1 GigE カメラを上回る帯域幅を実現します。

1GigE カメラをアップグレードし、最大2.5倍のフレームレートを実現するファクトリータフな産業用カメラをぜひご活用ください。
• アクティブセンサーアライメント
• Power over Ethernet (PoE)
• 広範な動作温度保証（周囲温度 -20～55℃）
• 高い耐衝撃・耐振動性
• 産業用EMCイミュニティ
• IP67準拠の防塵・防水性能

フレームレート向上の一例：

Sony IMX547 CMOS
500万画素（2448×2048 px）
販売価格：635米ドル

22 FPS

49.2 FPS

1 GigE:

(RAW出力、非圧縮)

Mehr Geschwindigkeit, gleiche Industriekamera

Die Triton2 bietet eine noch nie dagewesene Leistung in einer kostengünstigen, kompakten Kamera. Die Verwendung einer 2,5-GigE-Schnittstelle (300 MB/s) ermöglicht eine höhere Bandbreite als bei 1-GigE-Kameras, ohne Kompromisse bei der Größe, dem Wärmemanagement oder der Unterstützung von Power over Ethernet (PoE) einzugehen.

Rüsten Sie Ihre 1GigE-Kamera noch heute auf und profitieren Sie von 2,5-mal schnelleren Bildraten in einer Factory Tough™-Industriekamera mit:
• Aktive Sensorausrichtung
• Power over Ethernet (PoE)
• Breiter Betriebstemperaturbereich (-20 bis 55°C ambient)
• Schutz vor Stößen und Vibrationen
• Industrietaugliche EMV-Verträglichkeit
• IP67 Staubdicht, wasserfest.

Beispiel für die Erhöhung der Bildrate

Sony IMX547 CMOS, 5,0 MP, 2448 x 2048 px
USD $635.00

22 FPS

49,2 FPS

1 GigE:

(RAW, Unkomprimiert)

더 빠른 속도, 동일한 산업 품질

Triton2는 비용 효율적이고 컴팩트한 카메라에서 전례 없는 성능을 제공합니다. 2.5GigE(300MB/s) 인터페이스를 채택하여 크기, 열 관리 또는 PoE(Power over Ethernet) 지원을 손상시키지 않으면서 1GigE 카메라보다 높은 대역폭을 사용할 수 있습니다.

지금 1GigE 카메라를 업그레이드하고 다음을 통해 Factory Tough™ 산업용 카메라에서 2.5배 빠른 프레임 속도를 활용하십시오.
• 활성 센서 정렬
• PoE(Power over Ethernet)
• 넓은 작동 온도 범위(주변 온도 -20 ~ 55°C)
• 물리적 충격 및 진동 보호
• EMC 산업 내성
• IP67 방진 및 방수.

프레임 속도 증가 예:

Sony IMX547 CMOS, 5.0 MP, 2448 x 2048 px
USD $635.00

22 FPS

49.2 FPS

1 GigE:

(RAW, 비압축)

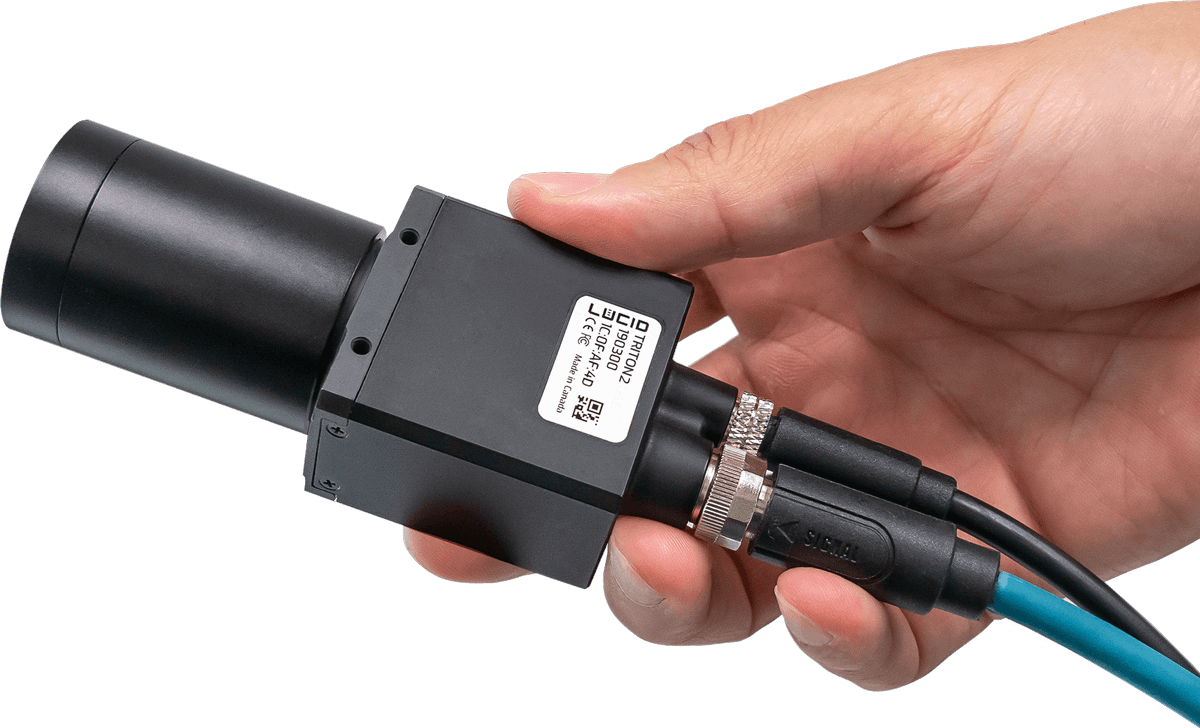

Industrial Machine Vision Camera

44 x 29 mm

90 grams

M12 / M8 Connectors

-20°C to 55°C Ambient

Triton2 with its 2.5GigE interface provides the best mix of cost, performance, and size and offers a natural upgrade path for 1GigE users requiring faster acquisition speed while minimizing the change on the backend system

The Triton2’s electronics are housed in a sealed two-piece aluminum case secured by 4 M2 screws. The M12 connector for Ethernet and M8 connector for GPIO provides a robust and sturdy connection resistant to shock and vibration. For even more protection, an optional IP67 lens tube can be attached for dust proof and water resistant operation, eliminating the need for an external case. The camera has excellent thermal management with a wide operating temperature range from -20°C to 55°C ambient. At only 90 grams and 44 x 29 mm, the Triton2 is an easy fit for reliable operation in any environment.

2.5 Gigabit Ethernet

Fast, reliable, and versatile interface for industrial use.

100m Cable Length

Deploy shielded CAT5e or CAT6 100m cables with isolated power between the Triton2 and host.

2.5Gb/s Bandwidth

Up to 2.5Gb/s (300 MB/s) streaming of raw and uncompressed image data.

Power Over Ethernet

Power over Ethernet (PoE) allows data & power on one cable, simplifying design & maintenance.

100% Compliant

Compatible with 3rd party software and hardware vendors that are GigE Vision compliant.

Triton2 2.5GigE Machine Vision IP67 Camera

Active Sensor Alignment

Active Sensor Alignment for Triton Camera

All Triton2 camera units are actively aligned to minimize image sensor tilt, image sensor rotation, and to place the center of the image sensor at the lens optical axis. Our six degrees of freedom manufacturing process accurately and precisely positions the image sensor to the lens mount so that images are sharp and crisp, even in the corners. Learn more about how our Active Sensor Alignment manufacturing process works in our tech brief.

IP67 Protection

What does IP67 mean?

The Ingress Protection (IP) rating system is a global standard of rating levels of protection from solid objects and liquids. With the lens tube attached, the IP67 Triton2 offers protection from solid particles such as dust, dirt and sand. It also offers water ingress protection of up to 1 meter submersion for 30 minutes. Employ high quality imaging under harsh environments while providing long-term camera durability without additional bulky enclosures.

By adding LUCID's IP67 sealed lens tube
and attachment ring, the camera lens can be
protected from both water and dust particles.

IP67 lens tube

IP67 M12 & M8 cables

IP67 cables seal the back ports from dust and water while guaranteeing secure and reliable cable connection.

What do I need?

LUCIDのIP67密閉レンズチューブとアタッチメントリングを追加することにより、カメラレンズを水と埃の粒子から保護。

IP67レンズチューブ

IP67 M12 & M8ケーブル

安全で信頼性の高いケーブル接続を保証しながら、埃や水から背面ポートを密閉するIP67ケーブル。

必要な備品

Mit dem IP67 Objektivtubus und Adapterring von LUCID kann die Kamera vor Wasser und Staubpartikeln geschützt werden.

IP67 Objektivschutz

IP67 M12 & M8 Kabel

IP67-Kabel dichten die Anschlüsse der Kamera gegen das Eindringen von Staub und Wasser ab und gewährleisten eine sichere und zuverlässige Verbindung.

Was benötige ich dafür?

LUCID의 IP67 밀봉 렌즈 튜브 및 부착 링을 추가하면 흙과 먼지 입자 모두로부터 카메라를 보호할 수 있습니다.

IP67 렌즈 튜브

IP67 M12 및 M8 케이블

IP67 케이블은 안전하고 안정적인 케이블 연결을 보장하면서 후면 포트에서 먼지와 물의 유입을 차단합니다.

다음과 같은 장치가 필요한 이유

M12 and M8 Connectors

The M12 Ethernet and M8 GPIO connectors provide robust and secure cable connection with ingress protection against dirt, dust, and water. The M12 Ethernet connector is standardized as IEC 61076-2-109 and is included in the GigE Vision standard. The secure 8 position M8 GPIO connector is standardized to IEC 61076-2-104 with an opto-coupled input line, an opto-coupled output line, and two bidirectional lines. Designed for error free operation in vibration environments and shielded to protect against electrical interference, the robust M12 and M8 ports make the Triton ideal for industrial, automotive, agriculture, process control, food and beverage, and medical applications.

M12 and M8 Connectors

The M12 Ethernet and M8 GPIO connectors provide robust and secure cable connection with ingress protection against dirt, dust, and water. The M12 Ethernet connector is standardized as IEC 61076-2-109 and is included in the GigE Vision standard. The secure 8 position M8 GPIO connector is standardized to IEC 61076-2-104 with an opto-coupled input line, an opto-coupled output line, and two bidirectional lines. Designed for error free operation in vibration environments and shielded to protect against electrical interference, the robust M12 and M8 ports make the Triton ideal industrial, automotive, process control, food and beverage, and medical applications.

Back Illuminated, Global Shutter CMOS

Unlike conventional sensors, Pregius S CMOS sensors place the wiring layers below the photo diode which removes obstructions and increases light collection. Shielded memory is added, enabling high speed, distortion-free global shutter imaging.

Wider incident angle improves light collection

Improved wiring increases speed

Microlens

Photo diode

Light shielding reduces noise

Memory

Wider incident angle improves
light collection

Microlens

Photo diode

Memory

Light shielding reduces noise

Improved wiring increases speed

Sony IMX530 CMOS, 1.2” Type, 2.74µm, 24.5MP, 5320 x 4600px

Back Illuminated, Global Shutter CMOS

従来のセンサーとは異なり、Pregius S CMOSセンサーは、配線層をフォトダイオードの下に配置して、障害物を取り除き、光の収集を増やします。シールドメモリが追加され、高速で歪みのないグローバルシャッターイメージングが可能になります。

より広い入射角は集光を改善します

配線の改善により速度が向上

マイクロレンズ

フォトダイオード

クロストークノイズをブロック

記憶

Wider incident angle improves
light collection

マイクロレンズ

フォトダイオード

記憶

クロストークノイズの低減

配線の改善により速度が向上

Sony IMX530 CMOS, 1.2” Type, 2.74µm, 24.5MP, 5320 x 4600px

Hintergrundbeleuchtet, Global Shutter CMOS

Im Gegensatz zu herkömmlichen Sensoren befinden sich bei den Pregius S CMOS-Sensoren die Verdrahtungsebenen unterhalb der Fotodiode, wodurch Hindernisse beseitigt und die Lichtsammlung erhöht werden. Hinzu kommt ein abgeschirmter Speicher, der eine schnelle, verzerrungsfreie Global-Shutter-Bildgebung ermöglicht.

Größerer Einfallswinkel verbessert die Lichtsammlung

Verbesserte Verdrahtung erhöht die Geschwindigkeit

Mikrolinsen

Fotodiode

Abschirmung reduziert Rauschen

Speicher

Größerer Einfallswinkel verbessert die Lichtsammlung

Mikrolinsen

Fotodiode

Speicher

Abschirmung reduziert Rauschen

Verbesserte Verdrahtung erhöht die Geschwindigkeit

Sony IMX530 CMOS, 1.2” Type, 2.74µm, 24.5MP, 5320 x 4600px

후면 조명, 글로벌 셔터 CMOS

Pregius S CMOS 센서는 기존 센서들과는 달리, 포토 다이오드 아래에 배선 레이어를 배치하여 장애물을 제거하고 집광을 향상시켜 줍니다. 왜곡없는 고속 글로벌 셔터 이미징이 가능하도록 차폐 메모리를 추가하였습니다.

광입사각으로 인한 집광 향상

배선의 개선으로 속도 증가

마이크로 렌즈

포토 다이오드

차광으로 인한 소음 감소

메모리

광입사각으로 인한 집광 향상

마이크로 렌즈

포토 다이오드

메모리

차광으로 인한 소음 감소

배선의 개선으로 속도 증가

Sony IMX530 CMOS, 1.2” Type, 2.74µm, 24.5MP, 5320 x 4600px

Arena SDK

Welcome to our powerful software development kit called Arena. The Arena SDK is designed from the ground up to leverage the latest in industry standards and software technology. It works fast with less calls to functions and is simpler to use thanks to its modern GUI based on the GenICam standard. In addition, LUCID’s ArenaView GUI capabilities are extended with built-in JupyterLab support, making it more than a simple camera viewer application. ArenaView with built-in JupyterLab provides preconfigured interactive development environment that can be used for testing and documenting all SDK functions and camera performances. Create notebook documents that contain both live Python code, rich text elements, and interactive visualizations, allowing developers to build camera GUIs with live output from the camera stream, all from within ArenaView.

• SDK Includes example code and a robust set of APIs.
• Search for help topics in our easy-to-use HTML5 documentation
• Arena UI toolkit for rapid development of custom GUIs
• ArenaView GUI for viewing and acquiring images.
• JupyterLab on ArenaView provides an interactive development environment using Python

Visit the Arena SDK page to learn more.
