The Atlas industrial camera is designed for imaging applications requiring high bandwidth in a compact size. The 5Gbase-T (5GigE) Ethernet interface is 5 times faster than Gigabit Ethernet, 50% faster than USB 3.2 Gen 1×1 and works with regular copper Ethernet cabling, up to 100m. Atlas supports Power over Ethernet (PoE) simplifying integration and reducing cost. It also supports large format APS-C image sensors, up to 31.4MP, without the need for large heatsinks or fans. The 5GigE Atlas hits the sweet spot of faster frame rates, small size and excellent price-performance.
対応モデル
防塵・防水
保護等級
CAT5e/CAT6
使用時)
-20 to 55°C
Staub / Wasser
Schutz
über CAT5e
oder CAT6
Betriebs
temperatur
-20 bis 55°C
먼지 및 물
보호
또는 CAT6
사용 시
600MB/s
작동 온도
-20 ~ 55°C
Benefits of 5GBase-T
Explore our Atlas 5GigE camera models
For an in-depth look at model specifications please click the part numbers below.
| Models | MP | Resolution | Fake FPS | FPS | Sensor | Format | Pixel Size | Shutter | Lens Mount | Chroma | GigE Vision Interface |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ATL314S | 31.4 MP | 6464 x 4852 px | 1 | 17.9 fps | Sony IMX342 CMOS | APS-C 27.9mm | 3.45 µm | Global | TFL (M35 x 0.75) / No Mount | Mono / Color | 5GigE, M12 |
| ATL196S | 19.6 MP | 4416 x 4428 px | 2 | 27.9 fps | Sony IMX367 CMOS | 4/3" 21.7mm | 3.45 µm | Global | TFL (M35 x 0.75) | Mono / Color | 5GigE, M12 |
| ATL168S | 16.8 MP | 5456 x 3076 px | 3 | 32.9 fps | Sony IMX387 CMOS | 4/3" 21.6mm | 3.45 µm | Global | TFL (M35 x 0.75) | Mono / Color | 5GigE, M12 |
| ATL120S | 12.3 MP | 4096 x 3000 px | 4 | 42.5 fps | Sony IMX253 CMOS | 1.1" | 3.45 µm | Global | C-mount / No Mount | Mono / Color | 5GigE, M12 |
| ATL089S | 8.9 MP | 4096 x 2160 px | 5 | 58.5 fps | Sony IMX255 CMOS | 1" | 3.45 µm | Global | C-mount | Mono / Color | 5GigE, M12 |
| ATL071S | 7.1 MP | 3208 x 2200 px | 6 | 74.6 fps | Sony IMX420 CMOS | 1.1" | 4.5 µm | Global | C-mount | Mono / Color | 5GigE, M12 |
| ATL050S | 5.0 MP | 2448 x 2048 px | 7 | 98 fps | Sony IMX250 CMOS | 2/3" | 3.45 µm | Global | C-mount | Mono / Color | 5GigE, M12 |
| ATL028S | 2.8 MP | 1936 x 1464 px | 8 | 173 fps | Sony IMX421 CMOS | 2/3" | 4.5 µm | Global | C-mount | Mono / Color | 5GigE, M12 |
Explore our Atlas IP67 5GigE camera models
Our Atlas IP67 models offer the same 5GigE performance but with built-in IP67 protection for dust proof and water resistant operation.
| Models | MP | Resolution | Fake FPS | FPS | Sensor | Format | Pixel Size | Shutter | Lens Mount | Chroma | GigE Vision Interface |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ATP245S | 24.5 MP | 5320 x 4600 px | 1 | 22.7 fps | Sony IMX540 CMOS | 1.2" | 2.74 µm | Global | C-mount | Mono / Color | 5GigE, M12 |
| ATP204S | 20.4 MP | 4504 x 4504 px | 2 | 27.3 fps | Sony IMX541 CMOS | 1.1" | 2.74 µm | Global | C-mount | Mono / Color | 5GigE, M12 |
| ATP200S | 20 MP | 5472 x 3648 px | 3 | 17.9 fps | Sony IMX183 CMOS | 1" | 2.40 µm | Rolling | C-mount | Mono / Color | 5GigE, M12 |
| ATP162S | 16.2 MP | 5320 x 3032 px | 4 | 34.4 fps | Sony IMX542 CMOS | 1.1" | 2.74 µm | Global | C-mount | Mono / Color | 5GigE, M12 |
| ATP124S | 12.3 MP | 4096 x 3000 px | 5 | 45.2 fps | Sony IMX545 CMOS | 1/1.1" | 2.74 µm | Global | C-mount | Mono / Color | 5GigE, M12 |
| ATP120S | 12.3 MP | 4096 x 3000 px | 6 | 42.5 fps | Sony IMX253 CMOS | 1.1" | 3.45 µm | Global | C-mount | Mono / Color | 5GigE, M12 |
| ATP089S | 8.9 MP | 4096 x 2160 px | 7 | 58.5 fps | Sony IMX255 CMOS | 1" | 3.45 µm | Global | C-mount | Mono / Color | 5GigE, M12 |
| ATP081S | 8.1 MP | 2840 x 2840 px | 8 | 68.8 fps | Sony IMX546 CMOS | 2/3″ | 2.74 µm | Global | C-mount | Mono / Color | 5GigE, M12 |
| ATP071S | 7.1 MP | 3208 x 2200 px | 9 | 74.6 fps | Sony IMX420 CMOS | 1.1" | 4.5 µm | Global | C-mount | Mono / Color | 5GigE, M12 |
| ATP051S | 5.0 MP | 2448 x 2048 px | 10 | 110 fps | Sony IMX547 CMOS | 1/1.8″ | 2.74 µm | Global | C-mount | Mono / Color | 5GigE, M12 |
| ATP050S | 5.0 MP | 2448 x 2048 px | 11 | 98 fps | Sony IMX250 CMOS | 2/3" | 3.45 µm | Global | C-mount | Mono / Color | 5GigE, M12 |
| ATP028S | 2.8 MP | 1936 x 1464 px | 12 | 173 fps | Sony IMX421 CMOS | 2/3" | 4.5 µm | Global | C-mount | Mono / Color | 5GigE, M12 |
Explore our Atlas SWIR IP67 camera models (1GigE)
Our Atlas SWIR IP67 models feature Sony’s SenSWIR CMOS sensors with built-in IP67 protection for dust proof and water resistant operation. Please note our SWIR models are 1GigE only. Visit Atlas SWIR page for more info.
| Models | MP | Resolution | FPS | Sensor | Sensor Size | Pixel Size | Shutter | Cooling | Lens Mount | Chroma / Sensitivity range | Interface |
|---|---|---|---|---|---|---|---|---|---|---|---|
 ATP013S-WC | 1.3 MP | 1280 x 1024 px | 84.9 fps | Sony IMX990 InGaAs | 1/2“ | 5 µm | Global | TEC1, Internal Heatsink | C | Mono, 400nm to 1700nm | M12 GigE Vision |
| ATP003S-WC | 0.3 MP | 640 x 512 px | 257 fps | Sony IMX991 InGaAs | 1/4“ | 5 µm | Global | TEC1, Internal Heatsink | C | Mono, 400nm to 1700nm | M12 GigE Vision |
Next-Level Imaging Performance for Large Format Sensors
EMVA 1288 Performance Data for 31.4 MP Sony IMX342 Global Shutter APS-C CMOS
> 70 dB
Dynamic Range
< 2.5 e-
Temporal Dark Noise
> 10100 e-
Saturation Capacity
> 40 dB
SNR Max
Active Sensor Alignment
With larger sensors, minor discrepancies in sensor tilt and rotation can have a negative impact on imaging. That is why all Atlas cameras are actively aligned to minimize sensor tilt and rotation, and to place the center of the image sensor at the lens optical axis. The result is a precisely attached large format sensor that is aligned to the lens mount so that images are sharp and crisp, even in the corners. Learn more about our Active Sensor Alignment process in our tech brief.
5Gbps - 5x GigE Vision Speeds with Power over Ethernet (PoE)
Power Over Ethernet
Power over Ethernet (PoE) allows both data and power over one M12 Ethernet cable, this adds value by reducing the number of cables needed and minimizing future maintenance.
100% Compliant
The Atlas is compatible with 3rd party software and hardware vendors that are GigE Vision compliant. This ensures reliable and consistent operations across different vendors.

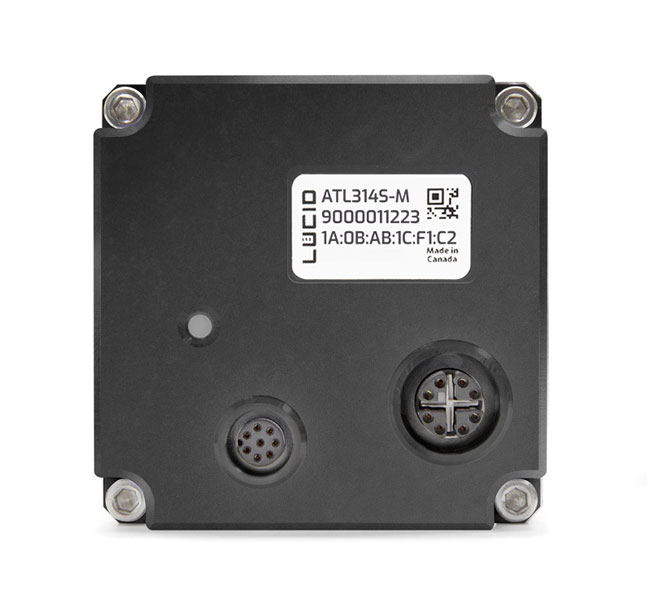

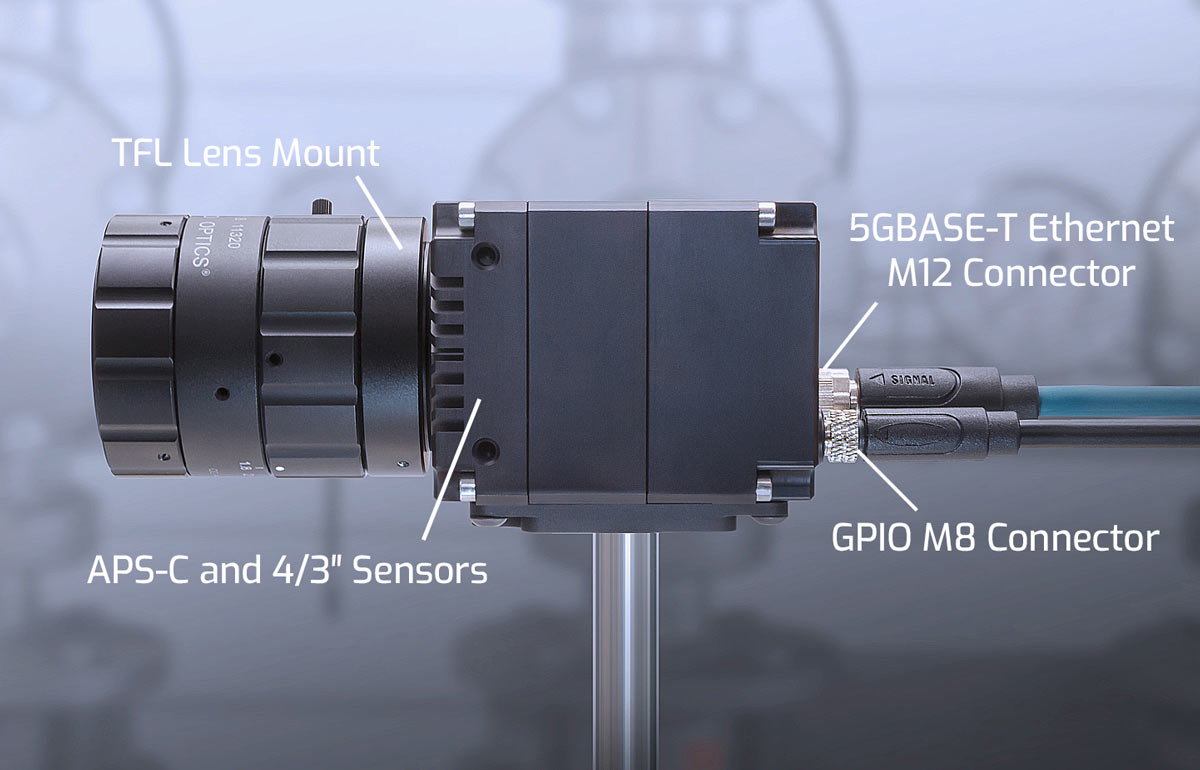

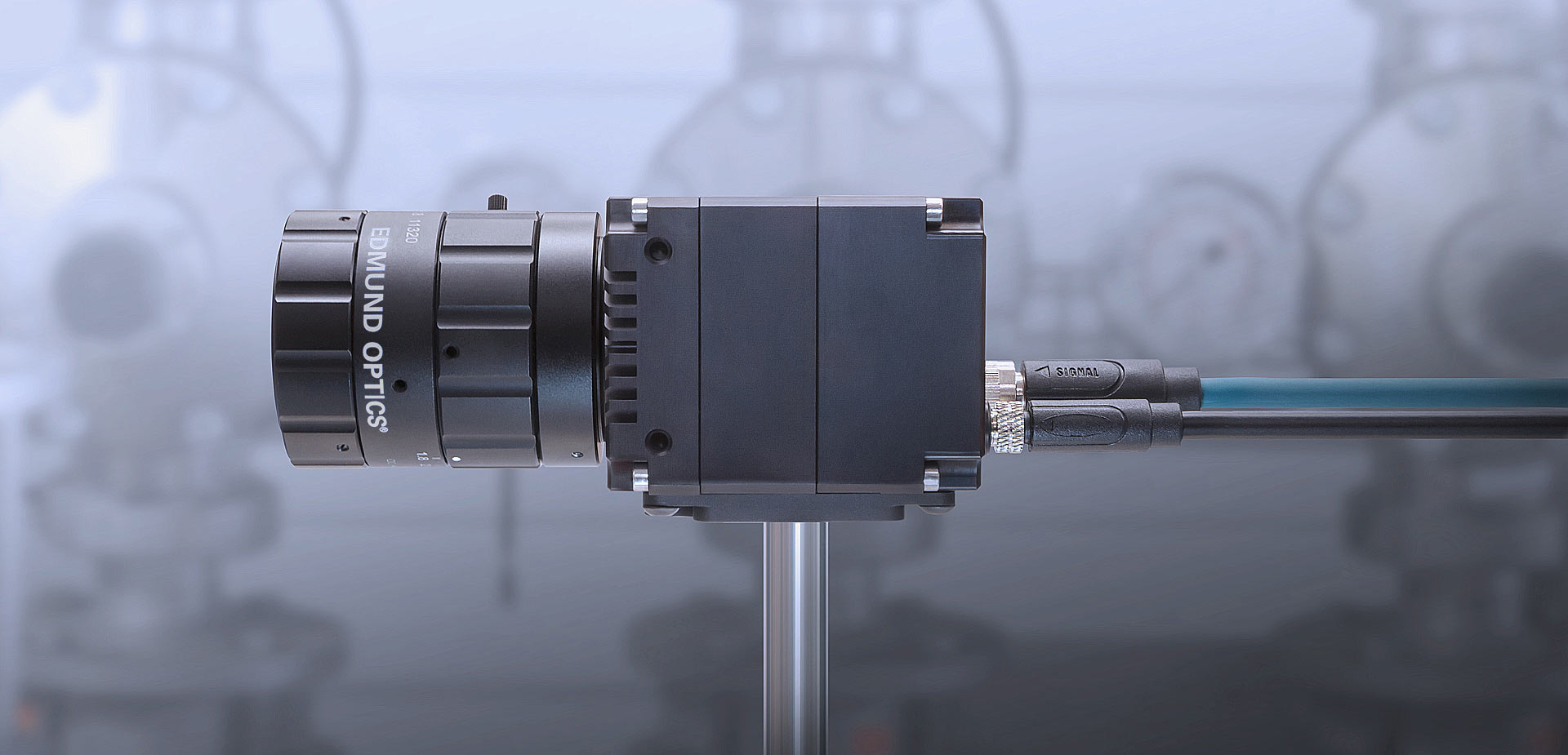

M12 and M8 Connectors

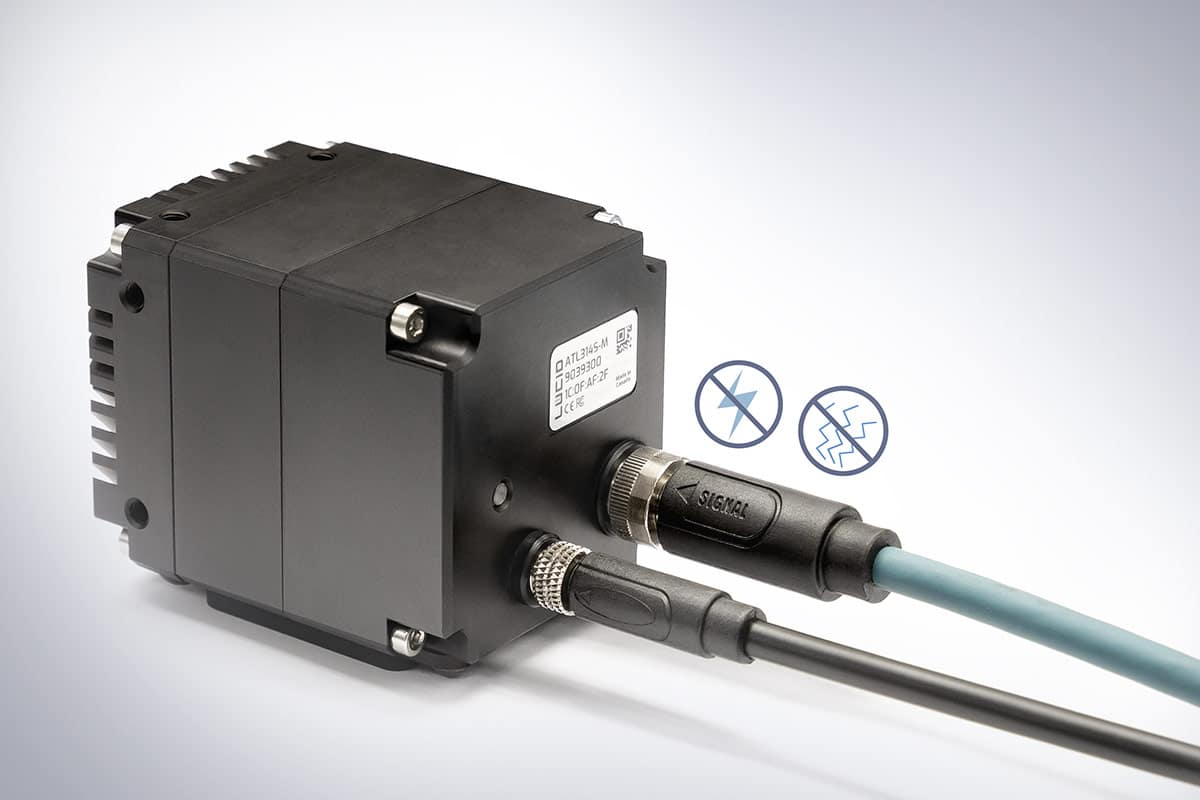

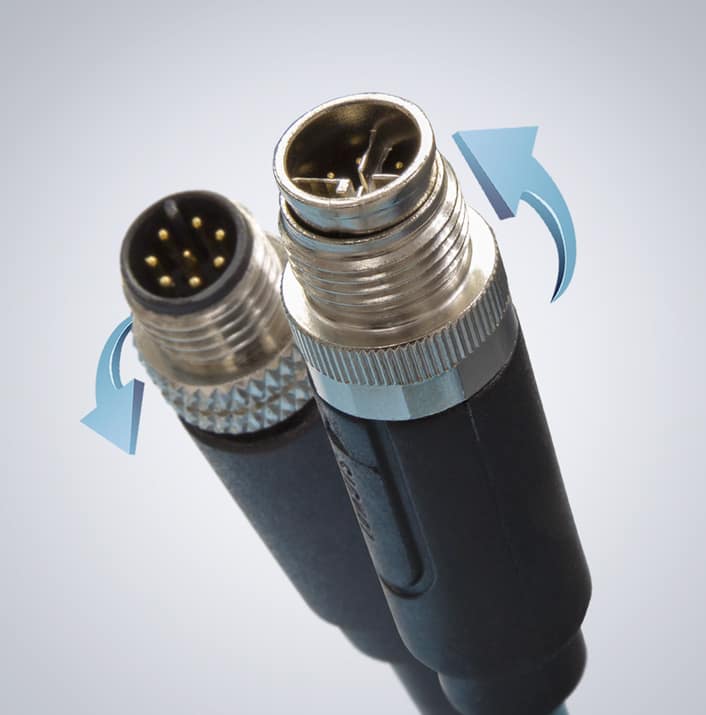

The M12 Ethernet and M8 GPIO connectors are designed to withstand the demands of an industrial environment. The M12 Ethernet connector is standardized as IEC 61076-2-109 and is included in the GigE Vision standard. Its rugged design allows for resistance against strong vibration and protection against electrical interference. The secure 8 pin M8 GPIO connector is standardized to IEC 61076-2-104 with an opto-coupled input line, an opto-coupled output line, and two bidirectional lines. M12 Ethernet and M8 GPIO connections are the superior choice for demanding applications such as industrial, automotive, agriculture, process control, food and beverage, and medical applications.

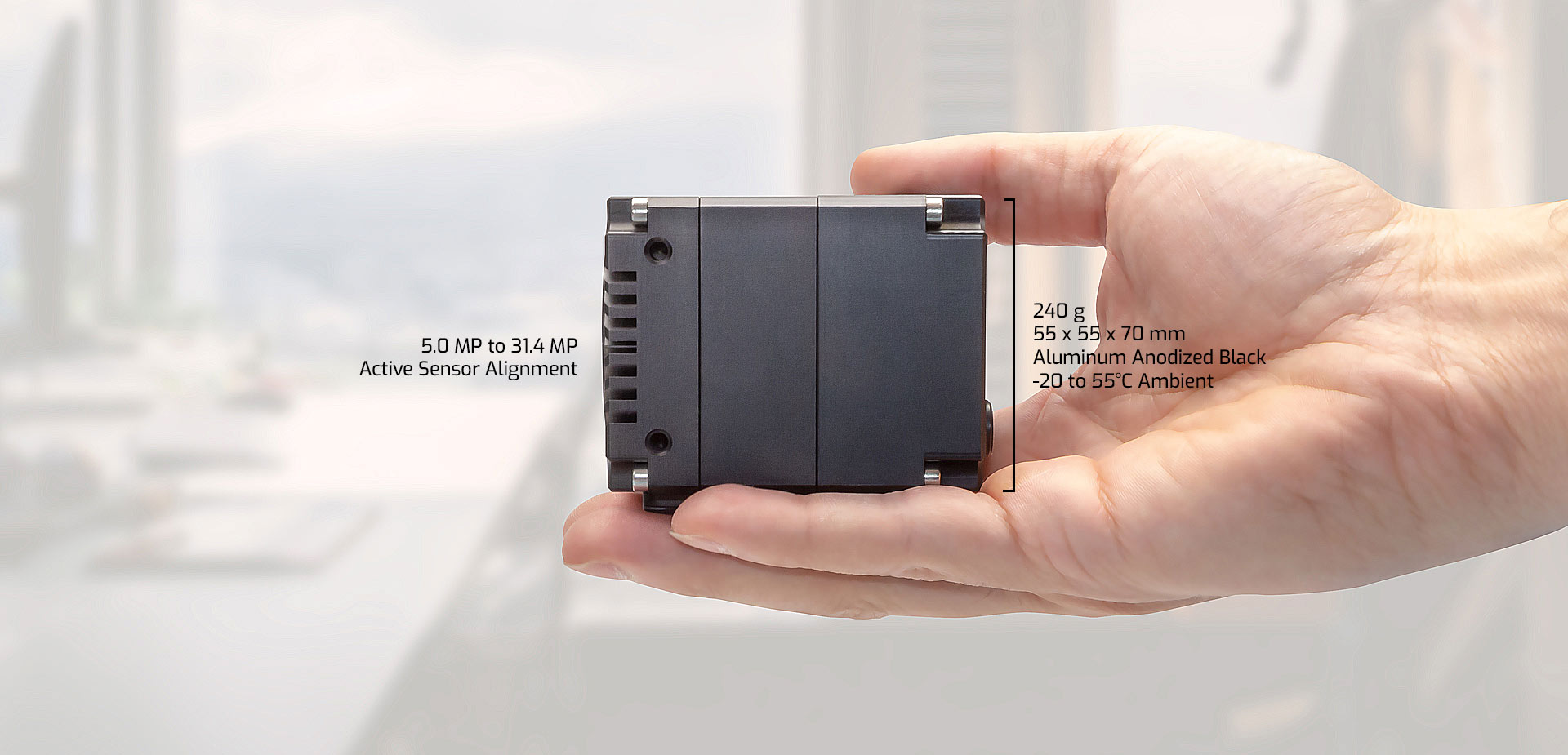

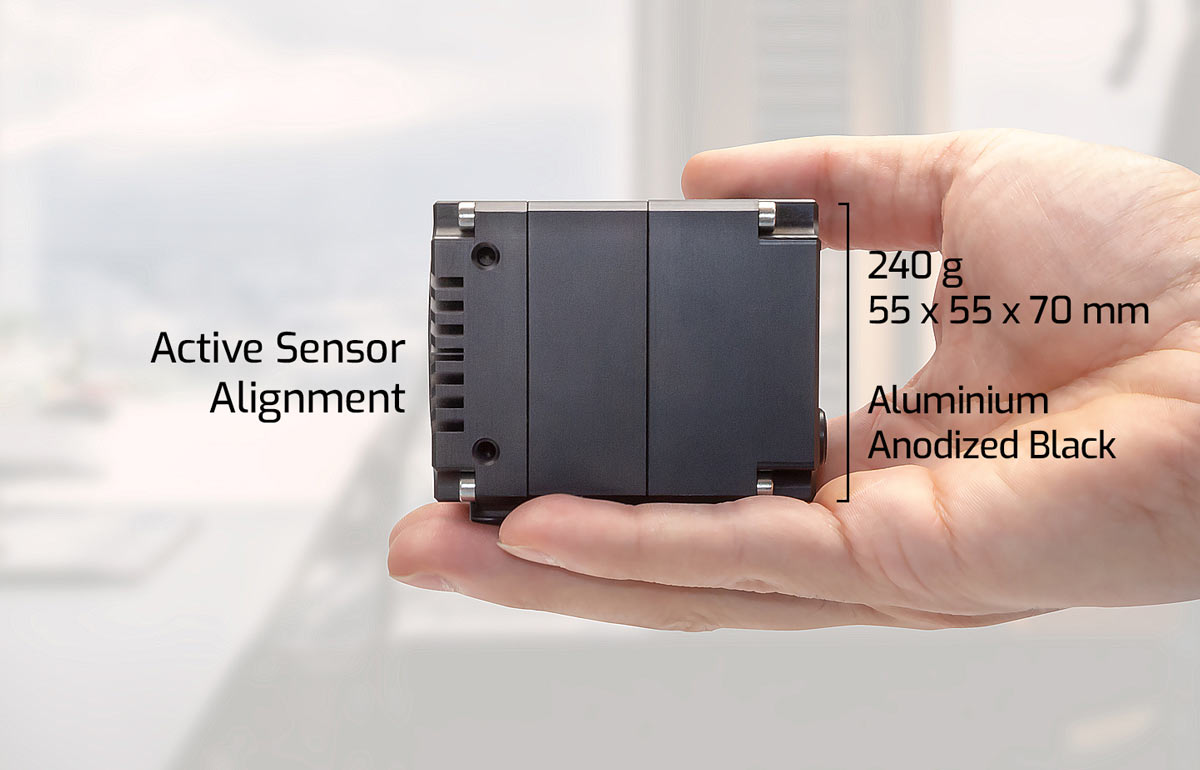

The Perfect Fit

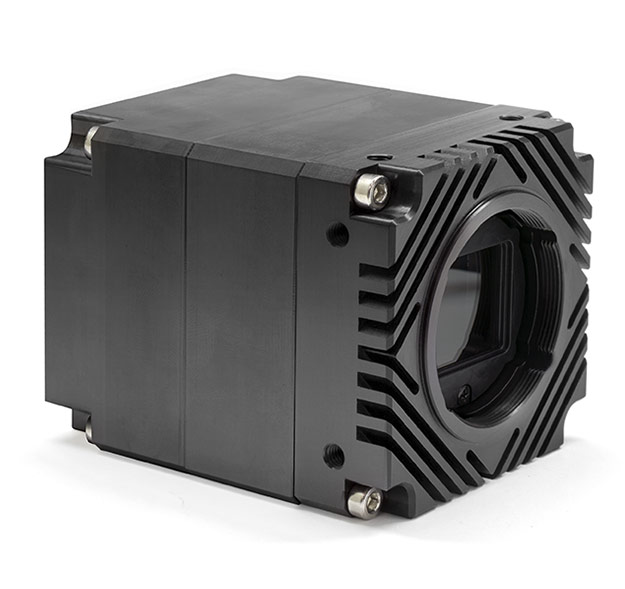

TFL-Mount - JIIA Lens Standard Built for Large Format Sensors
The TFL-mount is designed specifically for large format sensors while maintaining an efficient size. This Japan Industrial Imaging Association (JIIA) lens standard uses a 35 mm mount size with a back flange focal distance (BFD) of 17.526mm. The TFL-mount can also take advantage of F-mount lenses with the addition of a ring adapter.
Arena SDK
Welcome to our powerful software development kit called Arena. The Arena SDK is designed from the ground up to leverage the high resolution Atlas camera. It works fast with less functions calls and is simpler to use thanks to its modern GUI based on the GenICam standard.
• Includes example code and a robust set of APIs.
• Search for help topics in our easy-to-use HTML5 documentation
• Arena UI toolkit for rapid development of custom GUIs
• ArenaView GUI for image acquisition and camera configuration
Visit the Arena SDK page to learn more.
